H2G-56- Energy Bundle

Description

Lifetime Energy Bundle. Comes with Hardware and is fully unlocked to use without the need top up or add extra credits.

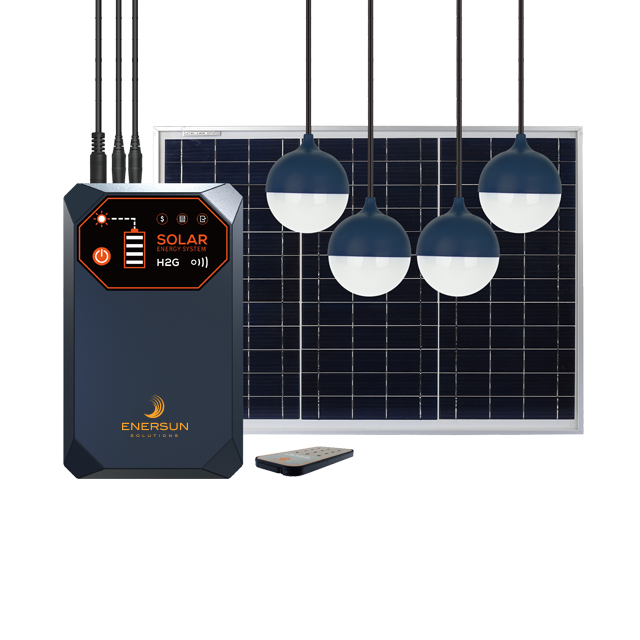

This product H2G-56 is a pay-as-you-go energy storage system with multi function. It is specially designed

for rural areas with electricity or off-grid communities, providing clean, stable and affordable power

generated by solar powered PV panel. This system makes good use of the advantages in LED lighting,

mobile phone charging and provides environmentally friendly power output. The advanced Lithium

Iron Phosphate battery (LiFePO4) guarantees best performance for long life span.

POWERED BY JUA ENERGY

Battery Specifications

Battery specification The key component of this system is the internal LiFePO4 battery cells, which can provide a life span up to 2000 times.
A. Battery Type – LiFePO4.

1. Model Number – IFR32700 x 3 pcs in 3S1P connection.
2. Capacity – 9.6V 6.0Ah 56Wh typical.
3. Longevity – 2000 charging and discharging cycles or greater.
4. Operating Temperature – 0~45℃

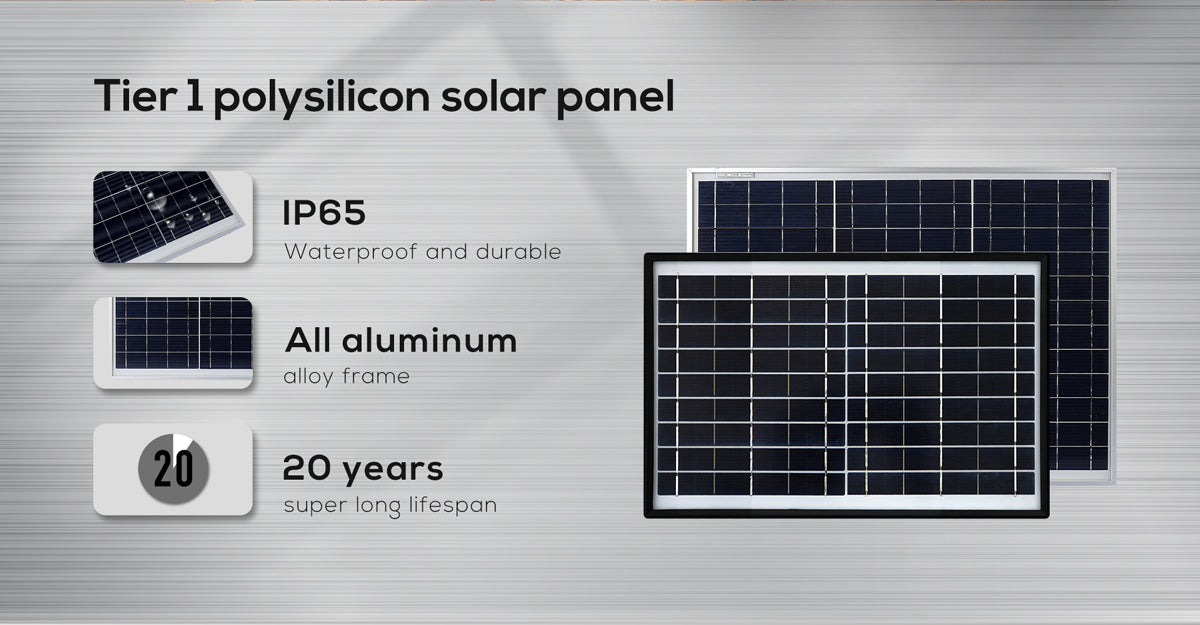

Solar panel specification

This system includes a high quality and high efficiency solar panel.

1. Solar Panel Type – Polycrystalline silicon solar cell.
2. Power Rating – DC 13V 20W.
3. Cable – 5 meters, 20# copper wire, UV resistant.

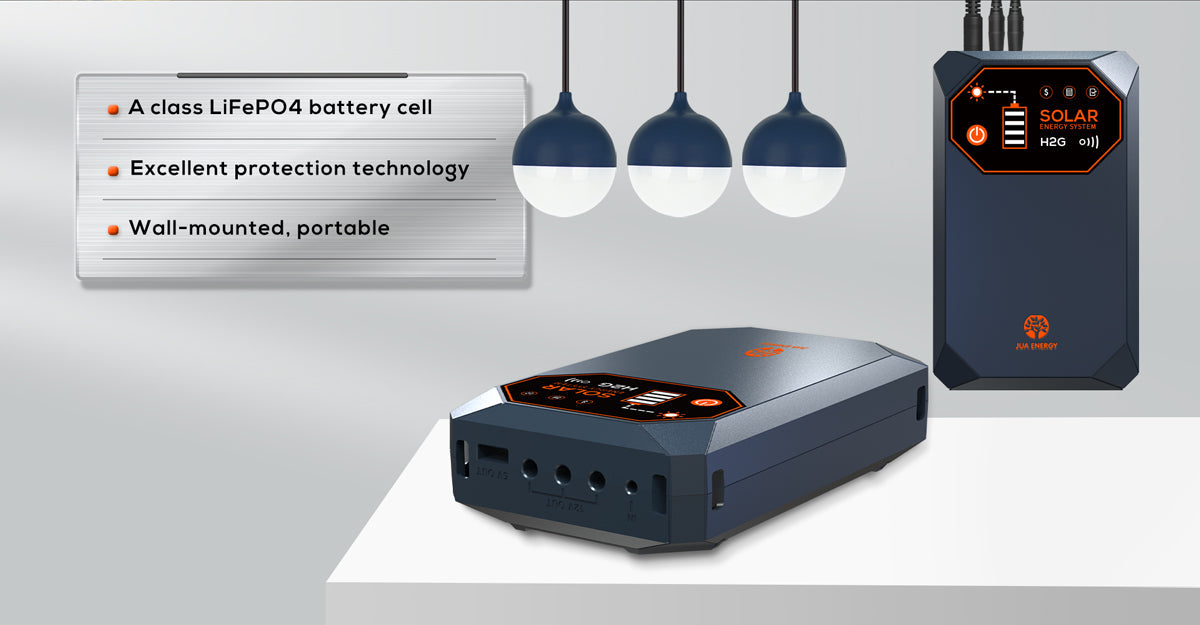

Control unit specification

The control unit of this system provides a full protection function and advanced control function for

the battery cell charging and discharging.

1. Battery protection function
2. Over Voltage Protection – 10.95V cut off.
3. Low Voltage Protection – 8.55V cut off.
4. Over Discharge Current Protection – 0.8A discharge cut off.
5. Charge current limit – 3.4A (to prevent large current charging for the safety).
6. DC 5V output
7. DC 5V Output Rating – DC 5V 2A max.
8. Output Over Current Protection – To cut off the output when the current is exceeded.
9. Compatible with most of the mobile devices in the world.
10. DC 12V output
11. DC 12V Output Rating – Standard DC005 port x 3, 12V 0.7A 8.4W max.
12. Output Over Current Protection – To cut off the output when the current is exceeded.
13. LED indicator

This system has charging status indicator and battery status indicator

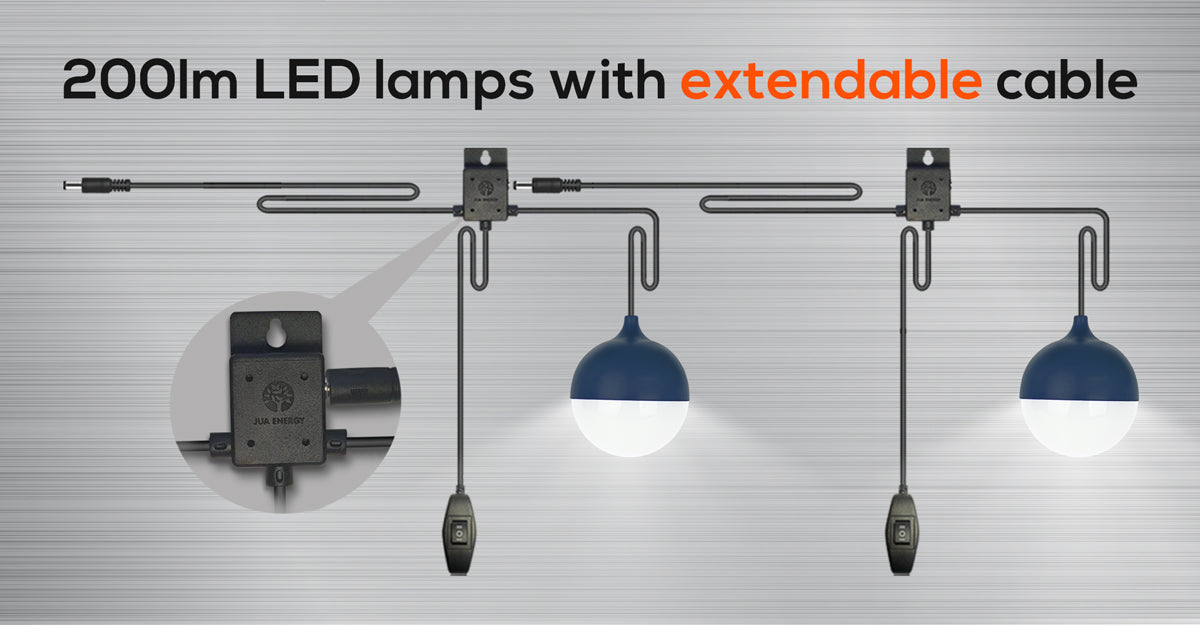

LED lamp specification

The LED lamps of this system provide constant brightness lighting in high efficiency driving mode.

1. LED Lamp Input – DC 12V.
2. LED Lamp Brightness – 130lm x 4pcs.
3. LED Lamp Cable – 5m cable with T-connector which supports lamps controlled independently and

connected one by one.

Packing

System dimension: 402 x 208 x 73 mm

Solar panel dimension: 420 x 350 x 18 mm

Product weight: 3.5Kg
